| Category | Parameter | Value/Description |
|---|---|---|
| Basic Specs | Model | CAT 330D2L |
| Operating Weight | 30,600 kg (Standard Configuration) | |
| Bucket Capacity (SAE) | 1.2-1.6 m³ (Heavy-Duty options) | |
| Max. Digging Depth | 7.62 m (with 6.25m arm) | |
| Max. Reach (Ground Level) | 11.18 m (with 6.25m arm) |

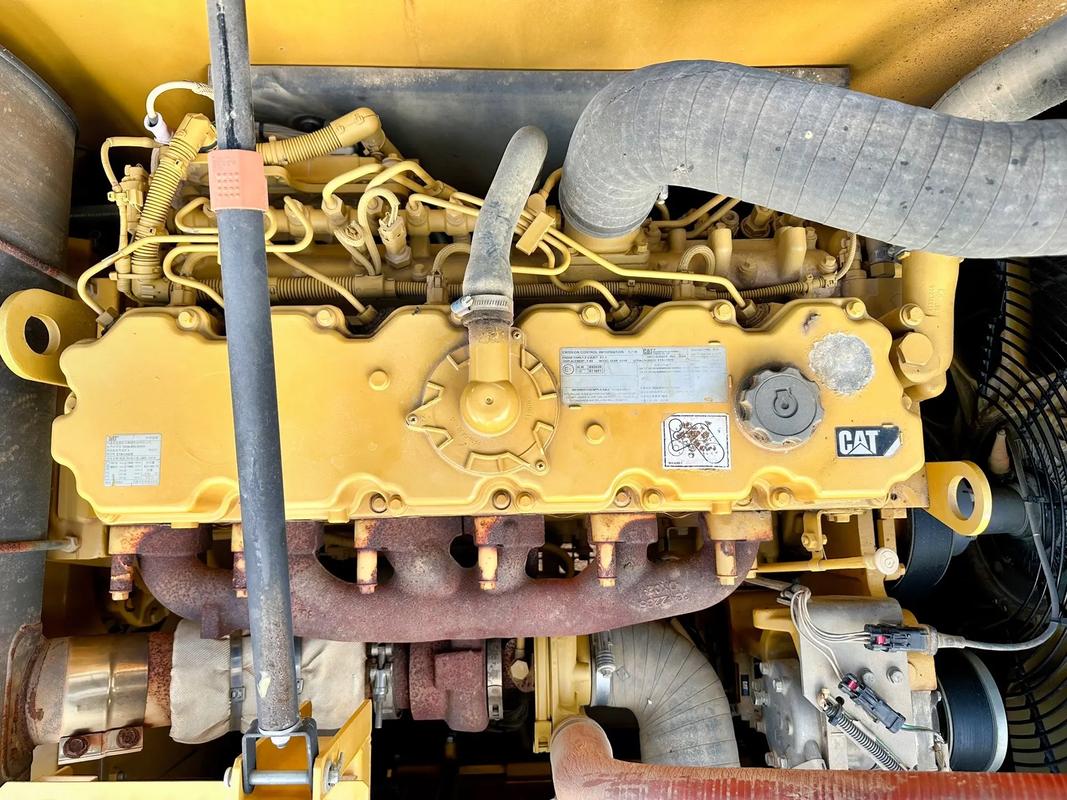

| Engine | Model | CAT C9.3 ACERT |
| | Type | Turbocharged Diesel, Tier 4 Final |
| | Net Power | 194 kW (260 HP) @ 1,800 rpm |
| | Displacement | 9.3 L |
| | Fuel Tank Capacity | 590 L |
| Hydraulic System | Main Pump Flow | 2 × 234 L/min (Total: 468 L/min)|
| | System Pressure | 34.3 MPa (350 bar) |
| | Swing Motor Torque | 90 kN·m |
| Dimensions | Transport Length | 11,200 mm |
| | Transport Width | 3,300 mm (Standard Shoe) |
| | Transport Height | 3,350 mm (Cab Height) |
| | Track Shoe Width | 600/800 mm (options) |
| Performance | Travel Speed | 5.1 km/h (High) |
| | Swing Speed | 10.5 rpm |
| | Gradeability | 35° (70% Slope) |
| | Ground Pressure | 52 kPa (600mm Shoe) |
| Key Features | Fuel Efficiency | Eco Mode reduces fuel consumption by up to 15% |
| | Durability | Reinforced booms/sticks, extended-life undercarriage |
| | Technology | Standard monitor with backup camera |
| | Comfort | ISO-certified cab with air suspension seat |
